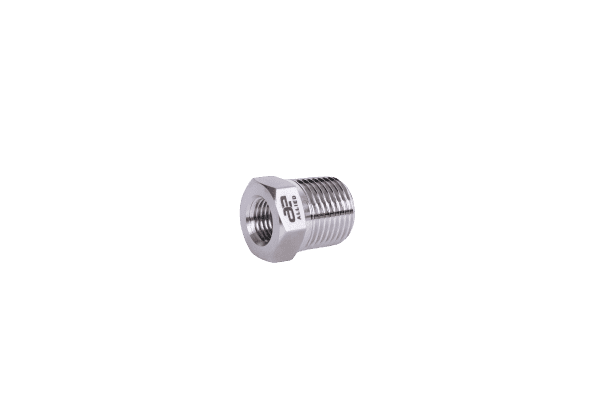

Reducing Bushing - ARB
![allied engineering](wp-content/uploads/2020/11/SP6C0669.png" "allied engineering")
![allied engineering](wp-content/uploads/2021/03/reducing-bushing-diagram.png" "allied engineering")
Male to Female NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -MALE NPT |
P2 -MALE NPT |
E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/8 | 0.28 | 7.1 | 1.06 | 26.9 | 9/16 | 6000 | 408 | ARB-4N-2N |
| 3/8 | 1/8 | 0.34 | 8.6 | 0.86 | 21.8 | 11/16 | 6400 | 435 | ARB-4N-2N |
| 3/8 | 1/4 | 0.38 | 9.6 | 1.19 | 30.2 | 3/4 | 5300 | 360 | ARA-6N-4N |
| 1/2 | 1/8 | 0.34 | 8.6 | 1.08 | 27.4 | 7/8 | 6600 | 450 | ARB-8N-2N |
| 1/2 | 1/4 | 0.45 | 11.4 | 1.08 | 27.4 | 7/8 | 6400 | 435 | ARB-8N-4N |
| 1/2 | 3/8 | 0.47 | 11.9 | 1.41 | 35.8 | 7/8 | 4600 | 315 | ARB-8N-8N |
| 3/4 | 1/4 | 0.45 | 11.4 | 1.08 | 27.4 | 11/8 | 6400 | 435 | ARB-12N-4N |
| 3/4 | 3/8 | 0.59 | 15.0 | 1.08 | 27.4 | 11/8 | 5300 | 360 | ARB-12N-6N |
| 3/4 | 1/2 | 0.62 | 15.7 | 1.63 | 41.4 | 11/8 | 4900 | 333 | ARB-12N-8N |
| 1 | 1/4 | 0.45 | 11.4 | 1.37 | 34.8 | 1 3/8 | 4600 | 315 | ARB-16N-4N |
| 1 | 3/8 | 0.59 | 15.0 | 1.37 | 34.8 | 1 3/8 | 4600 | 315 | ARB-16N-6N |
| 1 | 1/2 | 0.73 | 18.5 | 1.37 | 34.8 | 1 3/8 | 4600 | 315 | ARB-16N-8N |
| 1 | 3/4 | 0.88 | 22.4 | 1.85 | 47.0 | 1 3/8 | 4200 | 286 | ARB-16N-12N |
