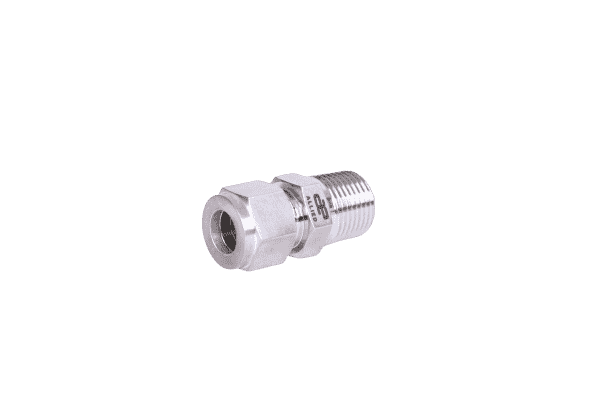

Male Connector (Tapered Thread)​

Male Connector
Male Connector

For fractional Tube to Female NPT thread connection

TUBE OD NPT MALE
THREAD 		DIMENSIONS IN INCH PART NO.
T P B E F G L
1/8 1/8 0.38 0.09 7/16 7/16 0.94 AMC-2-2N
1/8 1/4 0.56 0.09 9/16 7/16 1.14 AMC-2-4N
1/8 3/8 0.56 0.09 11/16 7/16 1.15 AMC-2-6N
1/8 1/2 0.75 0.09 7/8 7/16 1.40 AMC-2-8N
3/16 1/8 0.38 0.12 7/16 1/2 0.97 AMC-3-2N
3/16 1/4 0.56 0.12 9/16 1/2 1.17 AMC-3-4N
1/4 1/8 0.38 0.19 1/2 9/16 1.00 AMC-4-2N
1/4 1/4 0.56 0.19 9/16 9/16 1.20 AMC-4-4N
1/4 3/8 0.56 0.19 11/16 9/16 1.22 AMC-4-6N
1/4 1/2 0.75 0.19 7/8 9/16 1.47 AMC-4-8N
1/4 3/4 0.75 0.19 11/8 9/16 1.53 AMC-4-12N
5/16 1/8 0.38 0.19 9/16 5/8 1.05 AMC-5-2N
5/16 1/4 0.56 0.25 9/16 5/8 1.23 AMC-5-4N
5/16 3/8 0.56 0.25 11/16 5/8 1.25 AMC-5-6N
5/16 1/2 0.75 0.25 7/8 5/8 1.50 AMC-5-8N
3/8 1/8 0.38 0.19 5/8 11/16 1.10 AMC-6-2N
3/8 1/4 0.56 0.28 5/8 11/16 1.28 AMC-6-4N
3/8 3/8 0.56 0.28 11/16 11/16 1.28 AMC-6-6N
3/8 1/2 0.75 0.28 7/8 11/16 1.53 AMC-6-8N
3/8 3/4 0.75 0.28 11/8 11/16 1.59 AMC-6-12N
1/2 1/8 0.38 0.19 13/16 7/8 1.13 AMC-8-2N
1/2 1/4 0.56 0.28 13/16 7/8 1.31 AMC-8-4N
1/2 3/8 0.56 0.38 13/16 7/8 1.31 AMC-8-6N
1/2 1/2 0.75 0.41 7/8 7/8 1.53 AMC-8-8N
1/2 3/4 0.75 0.41 11/8 7/8 1.59 AMC-8-12N
1/2 1 0.9 0.41 13/8 7/8 1.85 AMC-8-16N
5/8 3/8 0.56 0.38 15/16 1 1.34 AMC-10-6N
5/8 1/2 0.75 0.47 15/16 1 1.53 AMC-10-8N
5/8 3/4 0.75 0.50 11/8 1 1.59 AMC-10-12N
3/4 1/2 0.75 0.47 11/16 1 1/8 1.59 AMC-12-8N
3/4 3/4 0.75 0.62 11/8 1 1/8 1.59 AMC-12-12N
3/4 1 0.94 0.62 13/8 1 1/8 1.85 AMC-12-16N
7/8 3/4 0.75 0.62 13/16 1 1/4 1.59 AMC-14-12N
7/8 1 0.94 0.72 13/8 1 1/4 1.85 AMC-14-16N
1 1/2 0.75 0.47 13/8 1 1/2 1.78 AMC-16-8N
1 3/4 0.75 0.62 13/8 1 1/2 1.78 AMC-16-12N
1 1 0.94 0.88 13/8 1 1/2 1.97 AMC-16-16N
