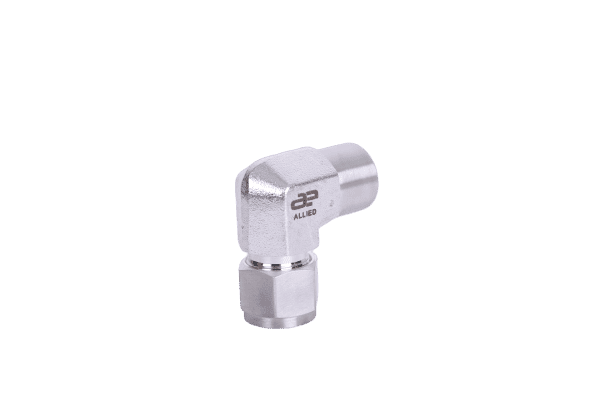

Male Pipe Weld Elbow
![](wp-content/uploads/2020/11/SP6C0309.png")
![](wp-content/uploads/2021/03/male-pipe-weld-elbow-diagram.png")
For fractional Tube to male pipe weld connection
| TUBE OD | MALE PIPE WELD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | SIZE | B | E | F | G | Lx | Ly | J | |
| 1/4 | 1/8 | 0.38 | 0.19 | 1/2 | 9/16 | 0.77 | 0.74 | 0.405 | AMWE-4-2 |
| 1/4 | 1/4 | 0.56 | 0.19 | 1/2 | 9/16 | 0.77 | 0.92 | 0.540 | AMWE-4-4 |
| 3/8 | 1/4 | 0.56 | 0.28 | 5/8 | 11/16 | 0.91 | 1.00 | 0.540 | AMWE-6-4 |
| 1/2 | 1/2 | 0.75 | 0.41 | 13/16 | 7/8 | 1.02 | 1.30 | 0.840 | AMWE-8-8 |
| 3/4 | 3/4 | 0.75 | 0.62 | 1 1/16 | 11/8 | 1.17 | 1.45 | 1.050 | AMWE-12-12 |
