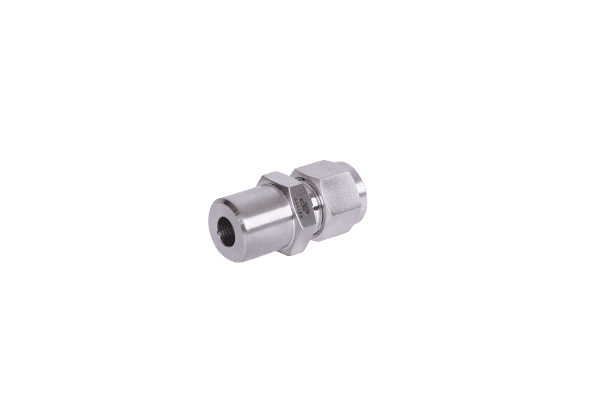

Tube Socket Weld Connector
![Allied Engineering](wp-content/uploads/2020/11/SP6C0425.png" "Allied Engineering")
![Allied Engineering](wp-content/uploads/2021/03/tube-socket-weld-connector-diagram.png" "Allied Engineering")
For fractional Tubes connection
| TUBE OD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|
| T | B | Bx | E | F | G | L | J | |
| 1/8 | 0.34 | 0.25 | 0.09 | 7/16 | 7/16 | 0.88 | 0.31 | ASWU-2 |
| 1/4 | 0.41 | 0.31 | 0.19 | 1/2 | 9/16 | 1.03 | 0.44 | ASWU-4 |
| 3/8 | 0.47 | 0.38 | 0.28 | 5/8 | 11/16 | 1.19 | 0.62 | ASWU-6 |
| 1/2 | 0.47 | 0.50 | 0.41 | 13/16 | 7/8 | 1.22 | 0.75 | ASWU-8 |
| 3/4 | 0.47 | 0.56 | 0.62 | 1 1/16 | 1 1/8 | 1.31 | 1.05 | ASWU-12 |
| 1 | 0.56 | 0.75 | 0.88 | 1 3/8 | 1 1/2 | 1.59 | 1.31 | ASWU-16 |
