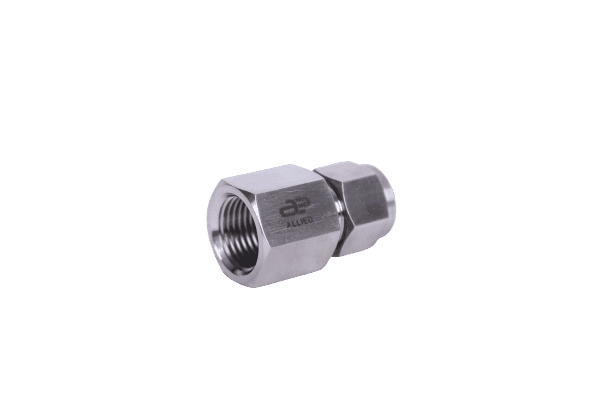

Female Connector (Tapered Thread)

Allied Engineering
Allied Engineering
Allied Engineering

For fractional Tube to male NPT thread connection

TUBE OD NPT FEMALE
THREAD 		DIMENSIONS IN INCH PART NO.
T P B E F G L
1/8 1/8 0.41 0.09 9/16 7/16 0.87 AFC-2-2N
1/8 1/4 0.59 0.09 3/4 7/16 1.06 AFC-2-4N
3/16 1/8 0.39 0.12 9/16 1/2 0.91 AFC-3-2N
1/4 1/8 0.39 0.19 9/16 9/16 0.94 AFC-4-2N
1/4 1/4 0.59 0.19 3/4 9/16 1.12 AFC-4-2N
1/4 3/8 0.59 0.19 7/8 9/16 1.19 AFC-4-6N
1/4 1/2 0.78 0.19 1 1/16 9/16 1.38 AFC-4-8N
5/16 1/8 0.41 0.25 9/16 5/8 0.97 AFC-5-2N
5/16 1/4 0.59 0.25 3/4 5/8 1.16 AFC-5-4N
5/16 3/8 0.59 0.25 7/8 5/8 1.22 AFC-5-6N
3/8 1/8 0.41 0.28 5/8 11/16 1.00 AFC-6-2N
3/8 1/4 0.59 0.28 3/4 11/16 1.19 AFC-6-4N
3/8 3/8 0.59 0.28 7/8 11/16 1.25 AFC-6-6N
3/8 1/2 0.78 0.28 1 1/16 11/16 1.44 AFC-6-8N
3/8 3/4 0.81 0.28 1 5/16 11/16 1.59 AFC-6-12N
1/2 1/4 0.59 0.41 13/16 7/8 1.19 AFC-8-2N
1/2 3/8 0.59 0.41 7/8 7/8 1.25 AFC-8-6N
1/2 1/2 0.78 0.41 1 1/16 7/8 1.44 AFC-8-8N
1/2 3/4 0.81 0.41 1 5/16 7/8 1.50 AFC-8-12N
5/8 3/8 0.59 0.50 1 5/16 1 1.25 AFC-10-6N
5/8 1/2 0.78 0.50 1 1/16 1 1.44 AFC-10-8N
5/8 3/4 0.81 0.50 1 5/16 1 1.50 AFC-10-12N
3/4 1/2 0.78 0.62 1 1/16 1 1/8 1.44 AFC-12-8N
3/4 3/4 0.81 0.62 1 5/16 1 1/8 1.50 AFC-12-12N
7/8 3/4 0.81 0.72 1 5/16 1 1/4 1.56 AFC-14-12N
1 3/4 0.81 0.88 1 3/8 1 1/2 1.62 AFC-16-12N
1 1 1.00 0.88 15/8 1 1/2 1.97 AFC-16-16N
