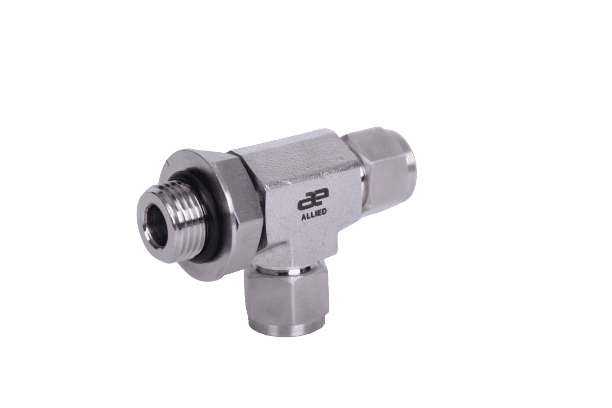

Positionable Male Run Tee (SAE/MS Straight Thread)
![allied engineering](wp-content/uploads/2020/11/SP6C0360.png" "allied engineering")
![allied engineering](wp-content/uploads/2021/03/positionable-male-run-tee-diagram.png" "allied engineering")
For fractional tube to SAE/MS straight thread boss connection
| TUBE OD | SAE/MS STRAIGHT THREAD |
DIMENSIONS IN INCH | UNIFORM SIZE NUMBER | PART NO. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | Fx | G | L | Lx | Ly | M | O-Ring | |
| 1/4 | 7/16-20 | 0.39 | 0.19 | 1/2 | 9/16 | 9/16 | 1.95 | 0.83 | 1.12 | 0.65 | -904 | AMRTP-4-7SE |
| 3/8 | 9/16-18 | 0.44 | 0.28 | 5/8 | 11/16 | 11/16 | 2.24 | 0.97 | 1.27 | 0.79 | -906 | AMRTP-6-9SE |
| 1/2 | 3/4-16 | 0.50 | 0.41 | 13/16 | 7/8 | 7/8 | 2.57 | 1.08 | 1.49 | 1.01 | -908 | AMRTP-8-12SE |
| 3/4 | 1 1/16-12 | 0.66 | 0.62 | 1 1/16 | 11/4 | 1 1/8 | 3.15 | 1.23 | 1.92 | 1.44 | -912 | AMRTP-12-17SE |
| 1 | 1 5/16-12 | 0.66 | 0.88 | 1 3/8 | 111/2 | 1 1/12 | 3.62 | 1.51 | 2.11 | 1.73 | -916 | AMBTP-16-21SE |
