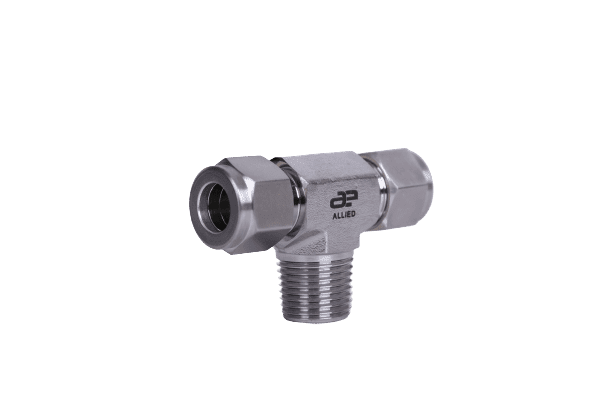

Male Branch Tee (Tapered Thread)

TUBE OD	NPT MALE THREAD	DIMENSIONS IN INCH							PART NO.
T	P	B	E	F	G	L	Lx	Ly
T	P	B	E	F	G	L	Lx	Ly
1/8	1/8	0.38	0.09	7/16	7/16	1.34	0.67	0.70	AMBT-2-2N
1/8	1/4	0.56	0.09	9/16	7/16	1.42	0.71	0.92	AMBT-2-4N
3/16	1/8	0.38	0.12	7/16	1/2	1.40	0.70	0.70	AMBT-3-2N
1/4	1/8	0.38	0.19	1/2	9/16	1.54	0.77	0.74	AMBT-4-2N
1/4	1/4	0.56	0.19	9/16	9/16	1.54	0.77	0.92	AMBT-4-4N
5/16	1/8	0.38	0.19	9/16	5/8	1.76	0.88	0.82	AMBT-5-2N
3/8	1/4	0.56	0.28	5/8	11/16	1.82	0.91	1.00	AMBT-6-4N
3/8	3/8	0.56	0.28	13/16	11/16	2.04	1.02	1.11	AMBT-6-6N
1/2	3/8	0.56	0.38	13/16	7/8	2.04	1.02	1.11	AMBT-8-6N
1/2	1/2	0.75	0.41	7/8	7/8	2.04	1.02	1.30	AMBT-8-6N
5/8	1/2	0.75	0.47	1	1	2.26	1.13	1.41	AMBT-10-8N
3/4	3/4	0.75	0.62	1 1/8	11/8	2.34	1.17	1.45	AMBT-12-12N
