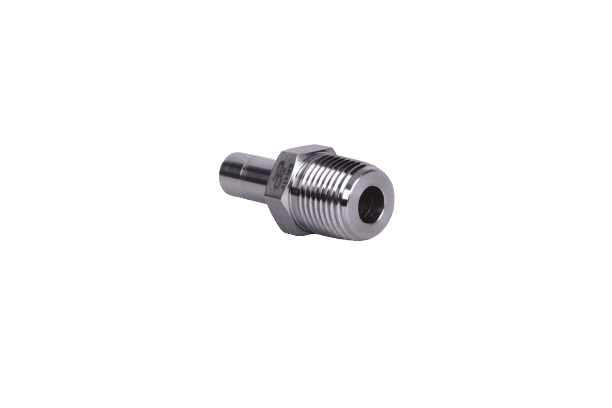

Male Adapter - AMA

T TUBE OD		P-ISO MALE PIPE	DIMENSIONS					PART NO.
			E		L		A/F
MM	INCH	SIZE	INCH	MM	INCH	MM	INCH	METRIC	INCH
-	1/8	1/8	0.08	2.0	1.16	29.5	7/16	-	AMA-2-2N
-	1/8	1/4	0.08	2.0	1.37	34.8	9/16	-	AMA-2-4N
-	3/16	1/8	0.12	3.0	1.19	30.2	7/16	-	AMA-3-2N
-	3/16	1/4	0.12	3.0	1.40	35.5	9/16	-	AMA-3-4N
6	1/4	1/8	0.17	4.1	1.25	32.8	7/16	AMA-6M-2N	AMA-4-2N
6	1/4	1/4	0.17	4.1	1.46	38.1	9/16	AMA-6M-4N	AMA-4-2N
-	1/4	3/8	0.17	4.3	1.49	37.8	11/16	-	AMA-4-6N
-	1/4	1/2	0.17	4.3	1.71	43.4	7/8	-	AMA-4-8N
-	5/16	1/8	0.19	4.8	1.29	32.7	7/16	-	AMA-5-2N
8	5/16	1/4	0.22	5.6	1.50	39.1	9/16	AMA-8M-4N	AMA-5-4N
-	3/8	1/8	0.19	4.8	1.32	33.5	7/17	-	AMA-6-2N
10	3/8	1/4	0.27	6.9	1.53	39.9	9/16	AMA-10M-4N	AMA-5-4N
10	3/8	3/8	0.27	6.9	1.56	40.6	11/16	AMA-10M-6N	AMA-6-4N
10	3/8	1/2	0.27	6.9	1.78	45.2	7/8	AMA-10M-8N	AMA-6-6N
12	1/2	1/4	0.28	7.1	1.75	46.5	9/16	AMA-12M-4N	AMA-8-4N
-	1/2	3/8	0.37	9.4	1.78	45.2	11/16	-	AMA-8-6N
12	1/2	1/2	0.37	9.4	2.00	52.1	7/8	AMA-12M-8N	AMA-8-8N
-	5/8	1/2	0.47	11.9	2.06	52.3	7/8	-	AMA-10-8N
-	3/4	1/2	0.47	11.9	2.06	52.3	7/8	-	AMA-12-8N
-	3/4	3/4	0.58	14.7	2.06	52.3	1 1/8	-	AMA-12-12N
-	1	3/4	0.62	15.7	2.31	58.6	1 1/8	-	AMA-16-12N
-	1	1	0.80	20.3	2.60	66.0	13/8	-	AMA-16-16N
