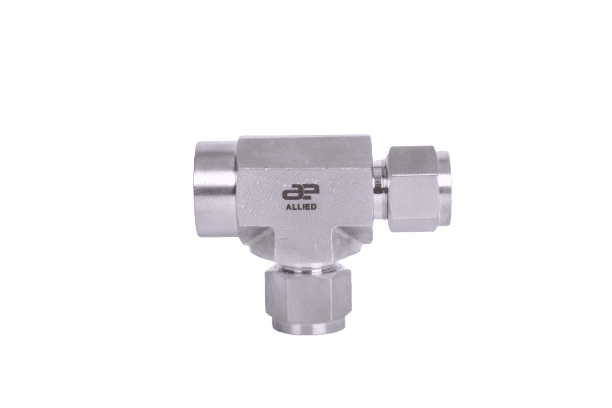

Female Run Tee (Tapered Thread)

TUBE OD	NPT FEMALE THREAD	DIMENSIONS IN INCH							PART NO.
T	P	B	E	F	G	L	Lx	Ly
T	P	B	E	F	G	L	Lx	Ly
1/8	1/8	0.41	0.09	9/16	7/16	1.46	0.71	0.75	AFRT-2-2N
1/4	1/8	0.41	0.19	9/16	9/16	1.52	0.77	0.75	AFRT-4-2N
1/4	1/4	0.59	0.19	3/4	9/16	1.76	0.88	0.88	AFRT-4-4N
3/8	1/4	0.59	0.28	3/4	11/16	1.82	0.94	0.88	AFRT-6-4N
1/2	3/8	0.59	0.41	7/8	7/8	1.90	1.02	0.88	AFRT-8-6N
1/2	1/2	0.78	0.41	1 1/16	7/8	2.29	1.17	1.12	AFRT-8-8N
3/4	3/4	0.81	0.62	1 3/8	1 1/8	2.61	1.36	1.25	AFRT-12-12N
1	3/4	0.81	0.88	1 3/8	1 1/2	2.70	1.45	1.25	AFRT-16-12N
1	1	1.00	0.88	1 5/8	1 1/2	3.13	1.63	1.50	AFRT-16-16N
