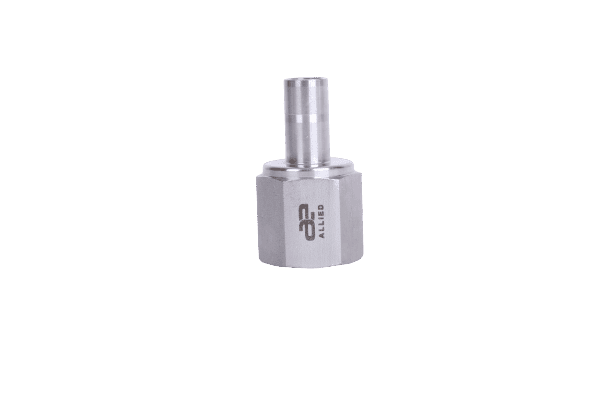

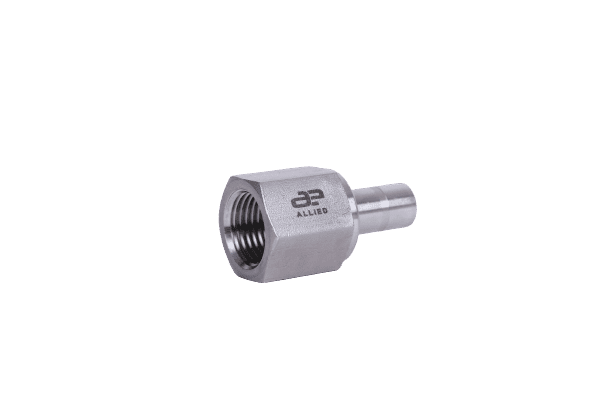

Female Adapter - AFA

T TUBE OD		P-ISO FEMALE PIPE	DIMENSIONS					PART NO.
			E		L		A/F
MM	INCH	SIZE	INCH	MM	INCH	MM	INCH	METRIC	INCH
6	1/4	1/4	0.17	4.1	1.39	35.3	3/4	AFA-6M-4RG	AFA-4-4RG
6	-	3/8	0.16	4.1	1.51	38.4	15/16	AFA-6M-6RG	-
6	-	1/2	0.16	4.1	1.68	42.9	1 1/16	AFA-6M-8RG	-
8	-	1/4	0.21	5.5	1.30	33.0	3/4	AFA-8M-4RG	-
8	-	1/2	0.22	5.6	1.72	43.7	1 1/16	AFA-8M-8RG	-
10	-	1/4	0.21	5.5	1.36	34.5	3/4	AFA-10M-4RG	-
-	3/8	3/8	0.26	6.6	1.55	39.4	15/16	-	AFA-6-6RG
10	-	1/2	0.27	7.1	1.62	41.1	1 1/16	AFA-10M-8RG	-
12	-	1/4	0.21	5.5	1.58	40.1	3/4	AFA-12M-4RG	-
12	1/2	1/2	0.27	1.92	1.50	48.8	1 1/16	AFA-12M-8RG	AFA-8-8RG
16	-	1/2	0.27	1.93	1.32	49.0	1 1/16	AFA-16M-8RG	-
18	-	1/2	0.27	1.94	1.53	49.3	1 1/16	AFA-18M-8RG	-
