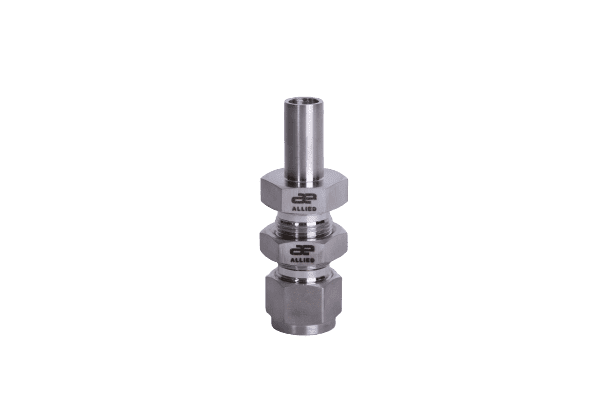

Bulkhead Reducer

TUBE OD	DIMENSIONS IN INCH					Panel Hole	Panel Thickness	PART NO.
T	E	F	G	L	Lx	Size	Max.
T	E	F	G	L	Lx	Size	Max.
1/8	0.08	1/2	7/16	1.69	0.97	21/64	0.50	ABR-2
1/4	0.19	5/8	9/16	1.91	1.03	29/64	0.40	ABR-4
3/8	0.28	3/4	11/16	2.12	1.16	37/64	0.44	ABR-6
1/2	0.39	15/16	7/8	2.47	1.25	49/64	0.50	ABR-8
5/8	0.50	1 1/16	1	2.56	1.28	57/64	0.50	ABR-10
1	0.80	1 5/8	11/2	3.47	1.78	1 21/64	0.75	ABR-16
