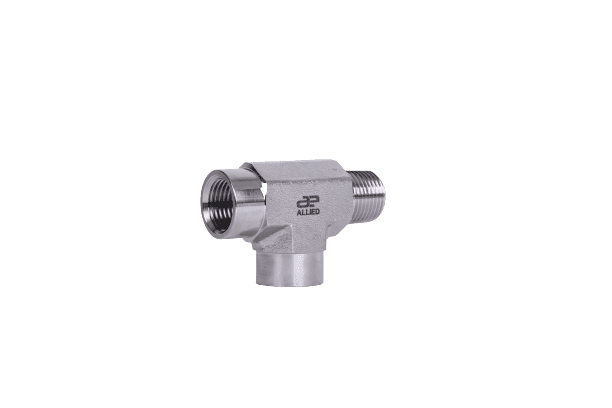

Branch Tee – ABT
![allied engineering](wp-content/uploads/2020/11/SP6C0500.png" "allied engineering")
![allied engineering](wp-content/uploads/2021/03/branch-tee-diagram.png" "allied engineering")
Female and Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1-MALE NPT |
P2-FEMALE NPT |
E | L1 | L2 | L3 | A/F | |||||||
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/8 | 1/8 | 0.19 | 4.8 | 2.08 | 52.8 | 1.04 | 26.4 | 0.87 | 22.1 | 9/16 | 5500 | 374 | ABT-2N |
| 1/4 | 1/4 | 0.28 | 7.1 | 2.34 | 59.4 | 1.17 | 29.7 | 1.17 | 29.7 | 3/4 | 5600 | 380 | ABT-4N |
| 3/8 | 3/8 | 0.38 | 9.6 | 3.84 | 72.1 | 1.42 | 36.1 | 1.26 | 32.0 | 7/8 | 5000 | 340 | ABT-6N |
| 1/2 | 1/2 | 0.47 | 11.9 | 3.12 | 79.2 | 1.56 | 39.6 | 1.56 | 39.6 | 1 1/16 | 4500 | 306 | ABT-8N |
