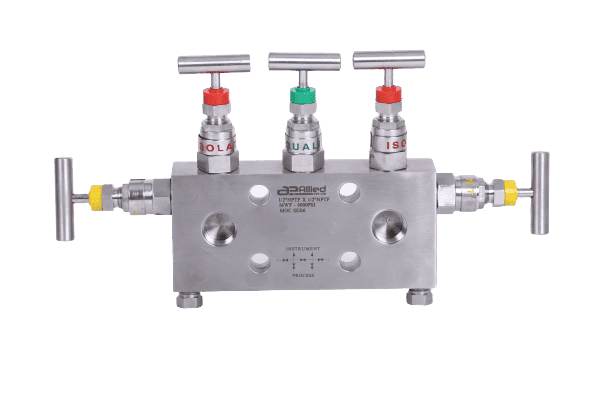

Model No. A5VM-DM

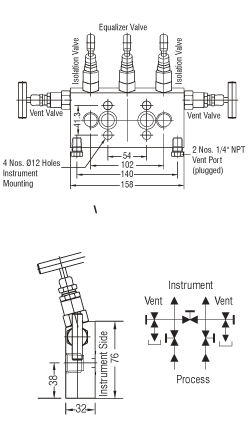

Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection centres but also available for other centres on request.

Vent valves on side and rest on top, screwed process connection

Connection

Process : 1/2″ NPT (F)
Instrument : Flanged
Drain/Vent : 1/2″ NPT (F)

Test Pressure

@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar

Gland Packing

PTFE : Standard
GRAPHOIL : Temperatures above 200°C

Material

A 105, A 182 / A 479 GR F 304,
A 182 / A 479 GR F316, Monel, Hastelloy, Duplex

Finish

CS zinc plated, SS Natural

Option

Test Port on precess side with plug

Accessory

Mounting Bolts – IS : 1364 – 1960 – 4 Nos
Interface seal – PTFE / VITON – 2 Nos

Note: Also available with BSP and BSP taper threads.
