Model No. A3VMR
![allied engineering](wp-content/uploads/2021/02/SP6C0083.png" "allied engineering")

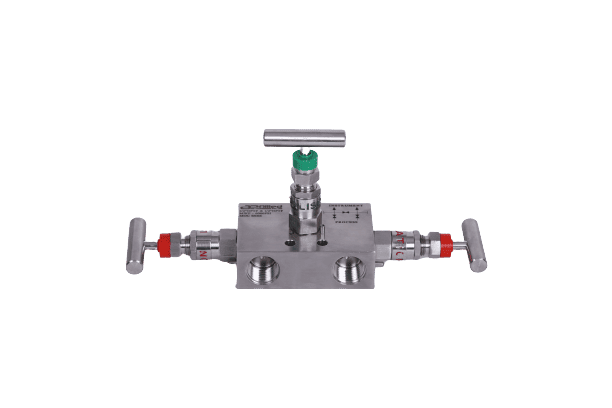

Designed for applications to facilitate remote mounting of differential pressure instruments. Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection. Centre distance found in majority of instruments.
The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Please consult us for these dimensions. Useful for installations in remote fields eliminating conventional method of piping.
The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Please consult us for these dimensions. Useful for installations in remote fields eliminating conventional method of piping.
Valve on three sides with screwed connections
Description

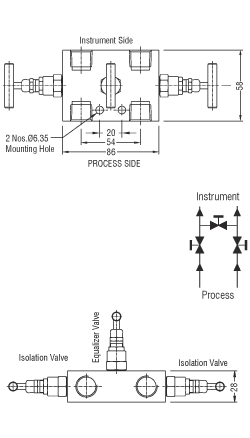

![allied engineering](wp-content/uploads/2021/02/a3vmr-diagram.png" "allied engineering")
Connection
Process : 1/2″ NPT (F)
Instrument : 1/2″ NPT (F)
Drain/Vent : 1/4″ NPT (F) optional
Test Pressure
@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar
Gland Packing
PTFE : Standard
GRAPHOIL : Temperatures above 200°C
GRAPHOIL : Temperatures above 200°C
Material
A 105, A 182 GR F 304,
A 182 GR F316, Monel, Hastelloy, Duplex
A 182 GR F316, Monel, Hastelloy, Duplex
Finish
CS zinc plated, SS Natural
Option
Drain Port on instrument side with drain plug (Dimension 58 becomes 76)
Test Port on process side with plug
Test Port on process side with plug
Accessory
Mounting Bolts – IS : 1364 – 1960 – 2 Nos
Note: Also available with BSP and BSP taper threads.
