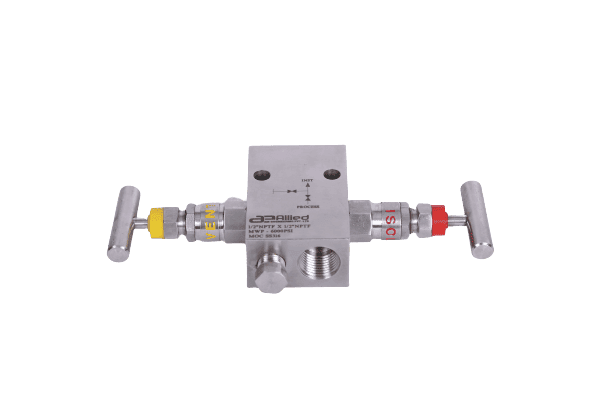

A2VM-DM

Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and vent / calibration valve. Generally used on static pressure transmitters, switches or gauges.

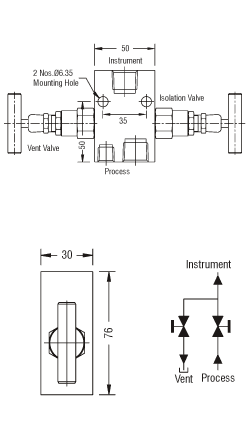

Isolation & vent valve opposed and drain on process side

Description

Connection

Process : 1/2″ NPT (F)
Instrument : 1/2″ NPT (F)
Drain/Vent : 1/2″ NPT (F)

Test Pressure

@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar

Gland Packing

PTFE : Standard
GRAPHOIL : Temperatures above 200°C

Material

A 105, A 182 / A 479 GR F 304, A 182 / A 479 GR F316, Monel, Hastelloy, Duplex

Finish

CS zinc plated, SS Natural

Option

Drain Plug. Three piece union for gauge positioning

Accessory

Mounting Bolts – IS : 1364 – 1960

Note: Also available with BSP and BSP taper threads.
